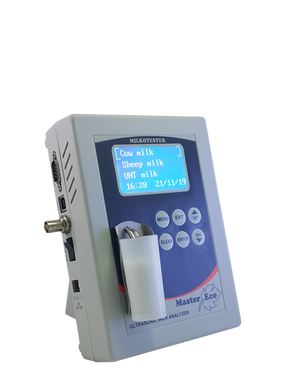

MASTER ECO

 MASTER ECO is high quality milk analyzer for measurement of the main milk parameters.Correct analysis of the components is carried out for 60sec (40sec/30sec). In addition, ph option and Bluetooth can also be added to the device. The analyzer is equipped with plastic body, compact and low weight, comfortable for narrow and less accessible areas. The switching adapter ensures stable work of the device in the event of voltage fluctuations in the range of 100V to 260 V. Three calibration channels are available. Standard calibrations for milk analyzer Master ECO are for Cow milk, Sheep milk, UHT. The analyzer can be calibrated also for: Buffalo milk, Pasteurized milk, Goat milk, Mixed milk, Skimmed milk, Whey and other types of milk and milk derivatives.

Technical Overview
Sample Volume 20 ml.
Sample Speed 60 sec.(40s./30s.)
Sample Temperature 5° - 42°C
Humidity 0 - 80% RH
Interface RS 232 port
Interface USB
AC Power Supply 95 - 250V
DC Power Supply 12V
Dimensions 139/47/181mm
Weight 0.9 kg



BROCHURE       INSTRUCTION MANUAL

AVAILABLE OPTION


More Info

  • Ultrasonic Technology
  • Very small quantity of milk needed
  • Memory for 50 measurements
  • pH (option)
  • Self calibration without computer
  • Low power consumption
  • 1 x RS232 connection
  • 1 x USB connection to PC
  • ESC POS Printer Support
  • Built-in keypad
  • Large graphic display
  • Peristaltic pump
  • One year full waranty
  • Clock (time and date)
  • No acids or other chemicals are used
  •



    Measuring Ranges



    Fat

    0.01% - 25%

    ±0.1%

    Solids-Non-Fat (SNF)

    3% - 15%

    ±0.15%

    Density

    1000 - 1160 kg/m3

    ±0,3 kg/m3

    Protein

    2% - 7%

    ±0.15%

    Lactose

    0,01% - 6%

    ±0.2%

    Salts

    0,4% - 4%

    ±0.05%

    Added Water

    0% - 70%

    ±3%

    Freezing Point

    -0,4 to -0,7°C

    0,005 °C

    Sample Temperature

    5 - 42°C

    ±1°C

    pH

    0-14

    ±0.05
