MASTER LM3

Master LM3 is convenient and reliable milk analyzer with sophisticated long life sensor and better precision, built-in data input keypad (liters and customer number).

Milk analyzers from Master LM3 series are high quality instruments. Accurate analysis of the milk parameters is performed   for 60 sec/40sec/30 sec. Master LM3 can be equipped with second peristaltic pump for automatic cleaning.

Available options (by customers’ request only) – conductivity, built-in printer, USB flash memory stick, second peristaltic pump for automatic cleaning, PH, accumulator, weighting scales, remote display.

Technical Overview

Sample Volume

20 ml.

Sample Speed

60/40/30sec.

Sample Temperature

5˚ C – ˚40 C

Humidity

0 – 80℅ RH

Interface

RS 232 Port

Interface

USB

AC Power Supply

95 – 250 V

DC Power Supply

12 V

Dimensions

112/224/222mm

Weight

2.5kg.



INSTRUCTION MANUAL

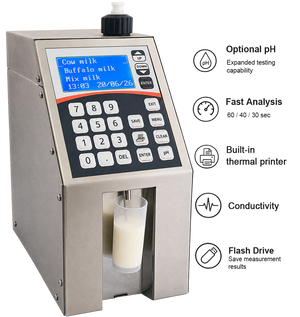

AVAILABLE OPTION


MORE INFO

  • Ultrasonic Technology
  • Very small quantity of milk needed
  • Memory for 500 measurements
  • pH (option)
  • Self calibration without computer
  • Low power consumption
  • 1 x RS232 connection
  • 1 x USB connection to PC
  • ESC POS Printer Support
  • Built-in keypad
  • Large graphic display
  • Peristaltic pump
  • One year full waranty
  • Clock (time and date)
  • No acids or other chemicals are used
  •

       Measuring Ranges

    Fat

    0℅ -35℅

    ±0.08℅

    Solids-Non-Fat (SNF)

    3℅ - 40℅

    ±0.15℅

    Density

    1000 – 1160 kg/m3

    ±0.3kg/m3

    Protein

    2℅ - 15℅

    ±0.15℅

    Lactose

    0.01℅ - 20℅

    ±0.2℅

    Salts

    0.4℅ - 1.5℅

    ±0.05℅

    Add Water

    0℅ - 70℅

    ±3℅

    Freezing Point

    -0.4˚C to -0.7˚C

    ±0.005˚C

    Sample Temperature

    5˚C-40˚C

    ±1˚C

    *Conductivity

    2 – 14mS/cm

    ±0.1mS/cm

    *pH

    0 - 14

    ±0.05


    BUY MORE



    flash drive

                USB Flash drive support

                All results from the tests are saved on Flash drive. They can be reviewed later with Excel program.





    pH

                    pH

                    In-built electronics fir measuring. 1pc pH probe and 1pc stand for pH probe





                In-built printer

                Ability to print all test results.





               Conductivity

                It helps detecting milk with false composition. It detects the addition of salt in milk.





                Master LM3 - P2

                Two peristaltic pumps for measurement and automatic cleaning.







                      In-built Batteries

                     We can integrate batteris in the milk analyzer. They will allow the analyzer to function for 8 hours without any other power supply.
