Made in the european union

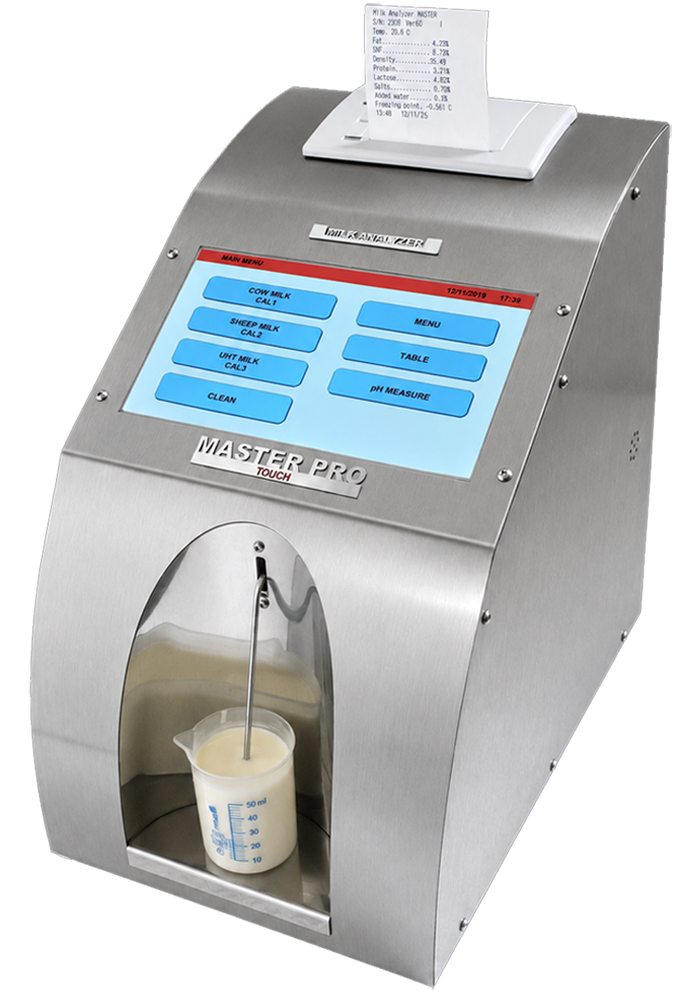

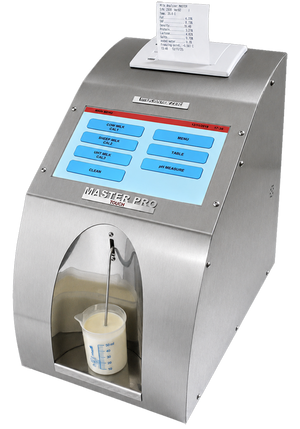

MASTER PRO TOUCH – the world’s first ultrasonic milk analyzer with touch screen. Innovative technology ensures easy and efficient operation with the device. Master Pro Touch is new generation milk analyzer equipped with 7’ touch screen graphic display. Fast and easy overview of the records saved in electronic table directly on the analyzers’ display, without using a PC.Data transfer option to PC in Microsoft Excel is available for Master Pro Touch.Fast and easy input of parameters for calibration and corrections directly on the buttons as well as on-screen keypad for entering customers and liters data. 7‘ display allows the sample measurement results to be visible on the screen until next analysis is in process.Available options (by customers’ request only) – conductivity, built-in printer, USB flash memory stick, second peristaltic pump for automatic cleaning, PH, accumulator, weighting scales, remote display.Three calibration channels are available. Standard calibrations for milk analyzer MASTER PRO TOUCH are for Cow milk, Sheep milk, UHT. The analyzer can be calibrated also for: Buffalo milk, Pasteurized milk, Goat milk, Mixed milk, Skimmed milk, Whey and other types of milk and milk derivatives.

Technical Overview

Sample Volume

20 ml.

Sample Speed

60/40/30sec.

Sample Temperature

5˚ C – ˚40 C

Humidity

0 – 80℅ RH

Interface

RS 232 Port

Interface

USB

AC Power Supply

95 – 250 V

DC Power Supply

12 V

Dimensions

280/285/193mm

Weight

3.4kg.



BROCHURE

INSTRUCTION MANUAL

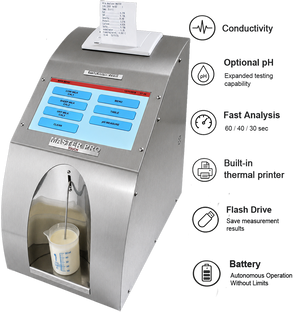

AVAILABLE OPTION

MILK DATA BANK - software download


MORE INFO



  • Ultrasonic Technology
  • Very small quantity of milk needed
  • Memory for 500 measurements

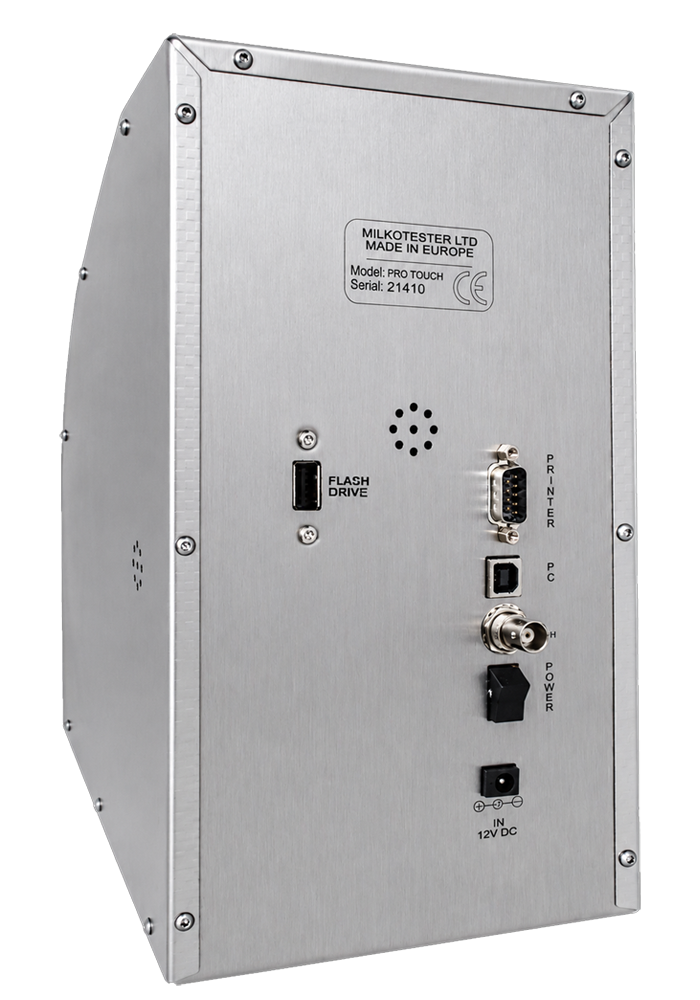

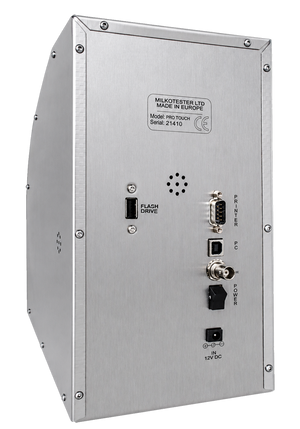

pH (option)Self calibration without computerLow power consumption1 x RS232 connection
1 x USB connection to PCESC POS Printer Support Built-in keypad7 displayPeristaltic pump
Scale (option)One year full warantyClock (time and date)No acids or other chemicals are used

   Measuring Ranges

Fat

0℅ -35℅ option to 45℅

±0.06℅

Solids-Non-Fat (SNF)

3℅ - 40℅

±0.15℅

Density

1000 – 1160 kg/m3

±0.3kg/m3

Protein

 2℅ - 15℅

±0.15℅

Lactose

0.01℅ - 20℅

±0.2℅

Salts

0.4℅ - 1.5℅

±0.05℅

Add Water

0℅ - 70℅

±3℅

Freezing Point

-0.4˚C to -0.7˚C

±0.005˚C

Sample Temperature

5˚C-40˚C

±1˚C

*Conductivity

2 – 14mS/cm

±0.05mS/cm

*pH

0 - 14

±0.05


BUY MORE




flash drive

            USB Flash drive support

            All results from the tests are saved on Flash drive. They can be reviewed later with Excel program.





pH

                pH

                In-built electronics fir measuring. 1pc pH probe and 1pc stand for pH probe





            In-built printer

            Ability to print all test results.





           Conductivity

            It helps detecting milk with false composition. It detects the addition of salt in milk.





            Master Pro Touch - P2

            Two peristaltic pumps for measurement and automatic cleaning.





                    Platform scales

                    In-built electronics + measuring platform.  Direct connection to the analyzer. Review of the measured kilograms.





                  In-built Batteries

                 We can integrate batteris in the milk analyzer. They will allow the analyzer to function for 8 hours without any other power supply.
